Accessories

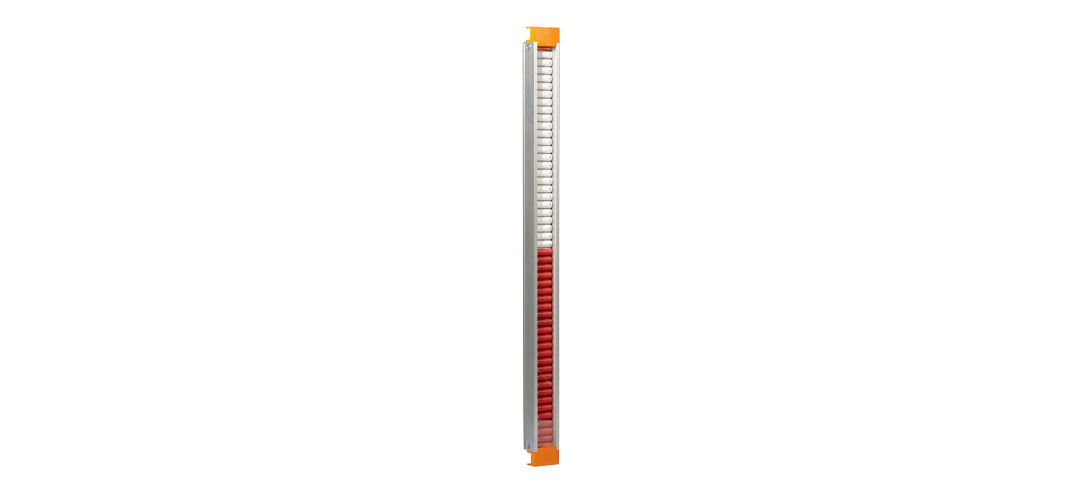

Indicator Profile
Indicator profiles with a durable aluminum body allow visual monitoring of the liquid level thanks to the magnetic flaps mounted inside.
Counter Flange
Counter flanges prepared according to the connection dimensions of the Level Control Devices can be manufactured in different sizes and in desired norms suitable for welding.

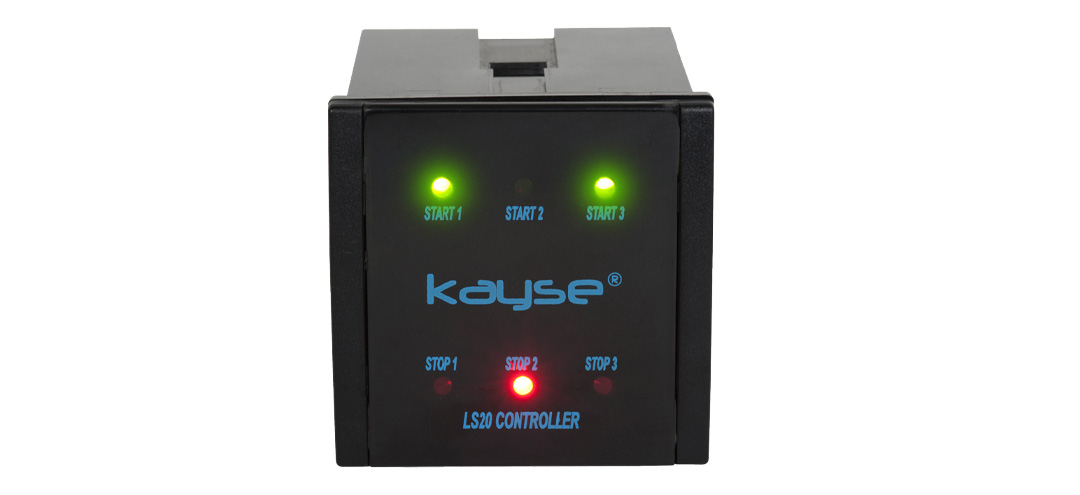

LS20 Controller
LS20 Controller acts as a dry contact switching between PS10-11 Limit Switch and the devices to be operated. It can be used more than once depending on the number of contacts to be taken. 6 PS10 Limit Switches can be connected to one controller.

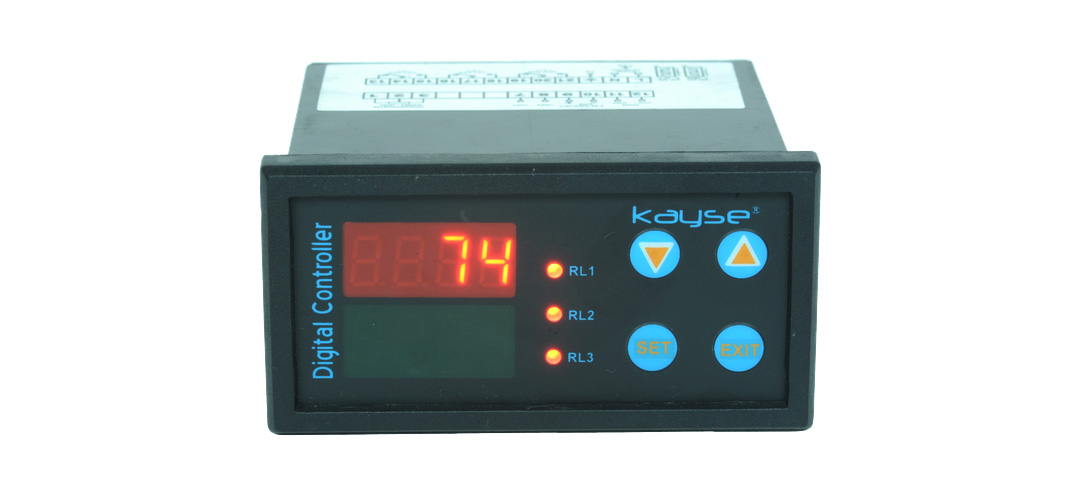

LS30 Digital Controller
It is used with MLG30 and LS30 Level Controllers. There are 3 relay outputs with NO + NC contacts. The status of the level can be monitored by connecting to the automation system from the screen.
PS10 Limit Switch
PS10 Limit Switches are accessories that can be mounted on the indicator profile and provide dry contact at the desired points. They can be used with LS20 controller support. They can be connected directly to the automation system.
PS11 Limit Switch
PS11 Limit Switches are accessories that can be installed on the indicator profile and provide dry contact at the desired points with changeover switches. They can be used with LS20 controller support. They can be connected directly to the automation system.

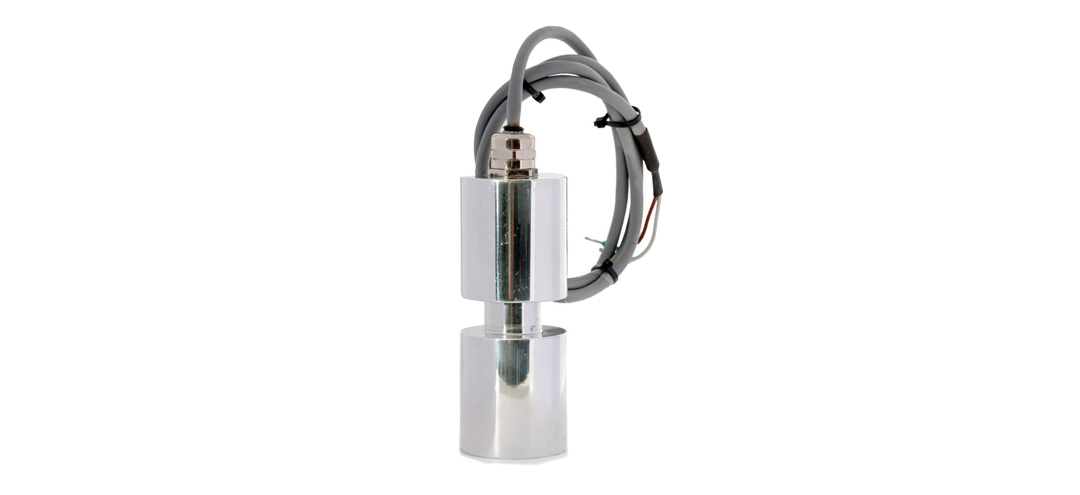

PS20-21 Bi-Stable Switch
PS20-21 Bistable Switches are accessories that can be installed on the indicator profile and provide dry contact at the desired points with changeover switches. Since the contact structure is sealed, it can be directly connected to the control circuit without the need to use the LS20 Controller.

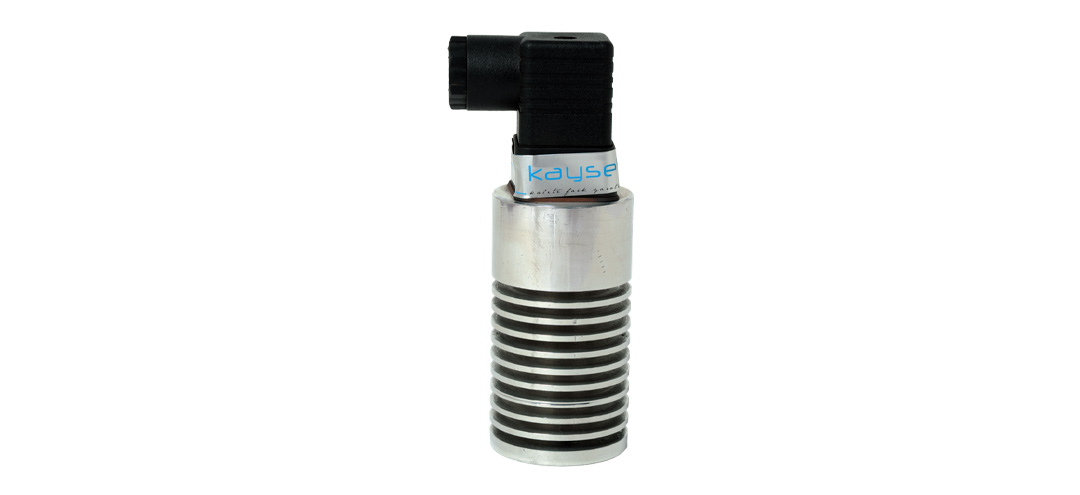

PS30-31 High Temperature Switches
PS30-31 Switches are accessories that can be installed on the indicator profile and provide dry contact from the desired points in high-temperature applications. They can be used with LS20 controller support.

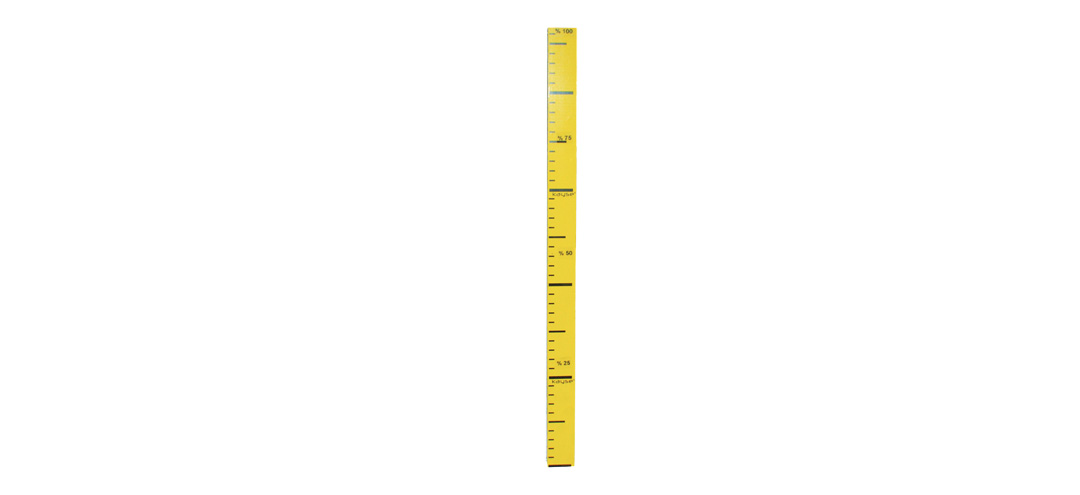

Scale
Scales with aluminum bodies are accessories that can be mounted on MLG Type Level Gauges and enable visual monitoring of the level in the tank in desired units.
