ASTRAevo (DDE)
ASTRAevo range is the ideal solution for most industrial applications. The pumps are conceived with the latest technologies to guarantee higher reliability of the pump, a longer life cycle of the diaphragms, and reducing at the lowest the maintenance necessities.

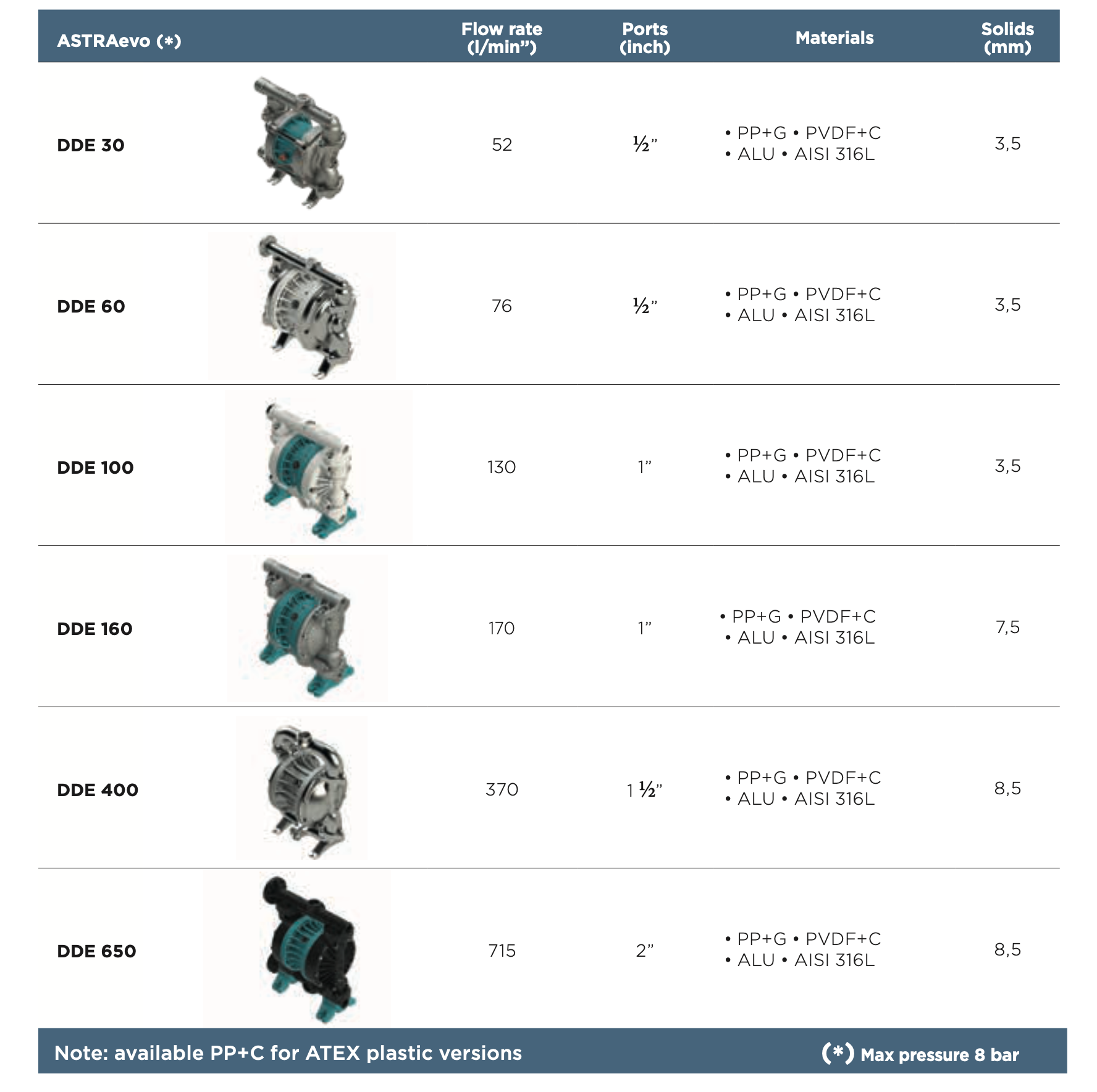

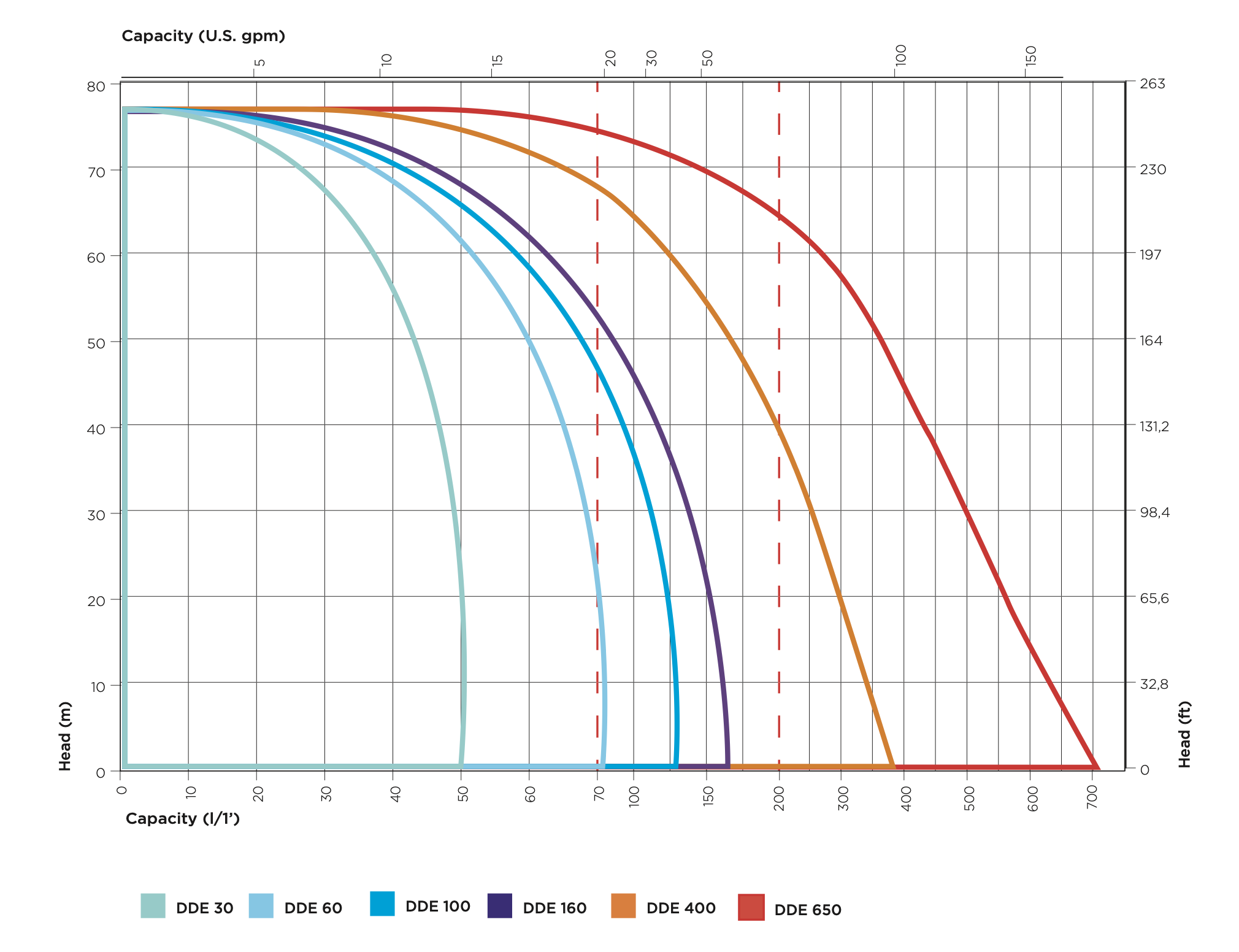

- High hydraulic performance up to 715 l/min
- Optimized air consumption
- Evolved diaphragm caps
- Non-icing air valve system
- Operating sensitivity improved (from 1 bar)
- Integrated muffler up to model DDE 160
- Easy maintenance
- Ideal for shear-sensitive liquids
- modified PTFE diaphragms inert to chemical agents
- Diaphragms available in thermoplastic materials (TPE, TPV) and
- reinforced elastomers (FKM, EPDM, NBR)
- Dry-running
- Self-priming
- Upon request: FDA conformity with ASTRAevo FOOD version
- Upon request: ATEX Zone 2 (II 3G Ex h IIB T4 Gb X | II 3D Ex h
- IIIB T135°C Db X) and Zone 1 (II 2G Ex h IIB T4 Gb X | II 3D Ex
- h IIIB T135°C Db X) with conductive body and parts
