EUROPA (ZGE)
BENEFITS & FUNCTIONALITIES
• ISO 2858 standard;
• Solid-block construction in pure thermoplastic polymers, outside armour in cast iron;
• Backpull-Out
• High capacity.
Capacity : up to 1.700 m3/h.
Construction : Long-coupled mech-sealed
Motor powers. : W 15 ÷ 100
Wetted section : U-PVC / PP / PVDF / UPPE
Temperatures : U-PVC +40° 0° / PP +80° -5°
Wetted section : U-PVC / PP / PVDF / UPPE
Temperatures : U-PVC +40° 0° / PP +80° -5°
PVDF +100° -20° / UPPE +70° -40°

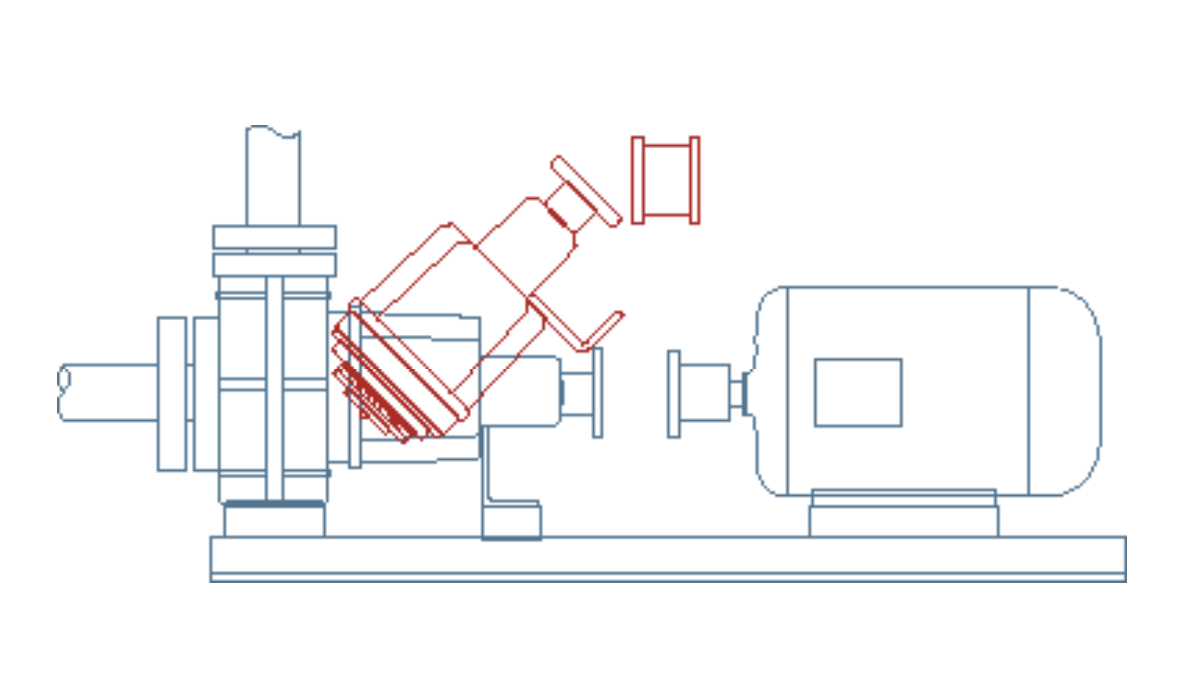

Back pull-out execution
All the pumps with elastic coupling are equipped with the back pull-out system that allows the dismantling of the internal and mechanic parts of the pump without disconnecting the casing from the fittings and without moving the motor.
