Low viscosity gear pumps
IF pumps are volumetric gear pumps suitable for transferring low viscous liquids without any suspended solids or abrasive substances. They are self-priming pumps used for a wide range of liquids with a viscosity from 1 to 1.000 cSt (when driven by a standard industrial electric motor). The speed of rotation is chosen according to the viscosity of the liquid. Flowrate range is from 5 to 25 L/min. These pumps are designed to reach a maximum pressure of 25 bar.
The standard construction consists of pump housing, cover, shafts and gears in stainless steel, O-rings in Viton, sleeve bushings in graphite and mechanical seal in ceramic-graphite-Viton. IF pumps are supplied with a pressure relief valve in stainless steel AISI 316.
Nozzles in inlet and outlet are of the same diameter and positioned on the same axis.
A short and straight alignment of the flow channels provides for a good suction capability and a quiet running.
IF pumps are designed to be coupled to an IEC electric motor IMB34 by means of coupling.
The electric motor can be supplied on request.
Nominal flow rates
Table 602 shows the possible flow rates considering a non-pressurized pumping (Δp=0) and a fluid with viscosity same as water.
The flow rate of gear pumps is virtually proportional to
their speed. The selected speeds are the most common speeds at rated power of industrial electric motors at 50 and 60Hz.
SENSE OF ROTATION AND FLOW DIRECTION

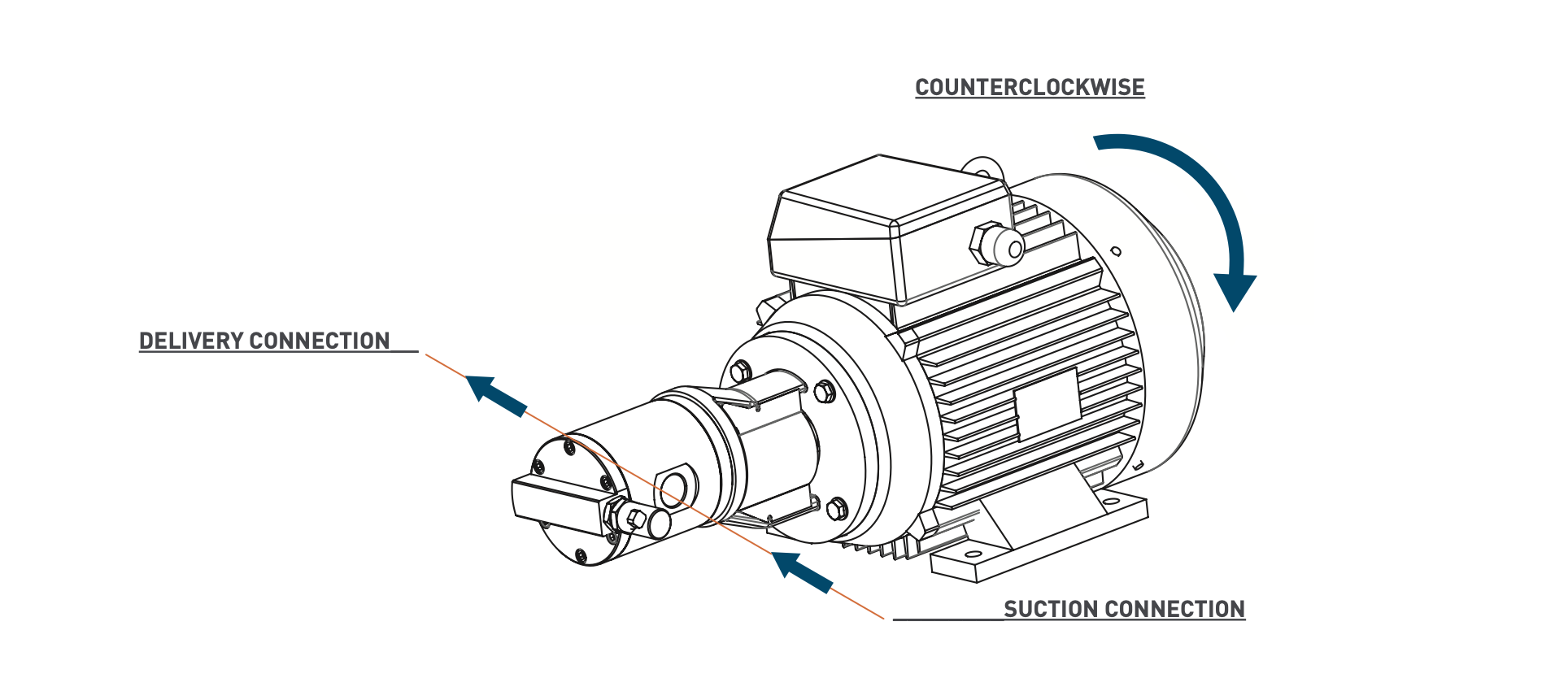

The standard version of IF pumps can operate only in one direction of rotation: counterclockwise watching the pump shaft end.
The direction of the fluid flow is shown by an arrow placed nearby the piping connections.
A proper mounting will keep the nameplate on the top side. In this case the flow direction will be from the left side to the right side watching the pump shaft end and the pressure side (delivery) will be at the right-hand side.
On request a clockwise version can be supplied.
Overal dimensions and weights
