MISTRAL (DDM )
BENEFITS & FUNCTIONALITIES
• Extremely efficient;
• Designed for continuous applications
• Sturdy construction, 5-year guarantee;

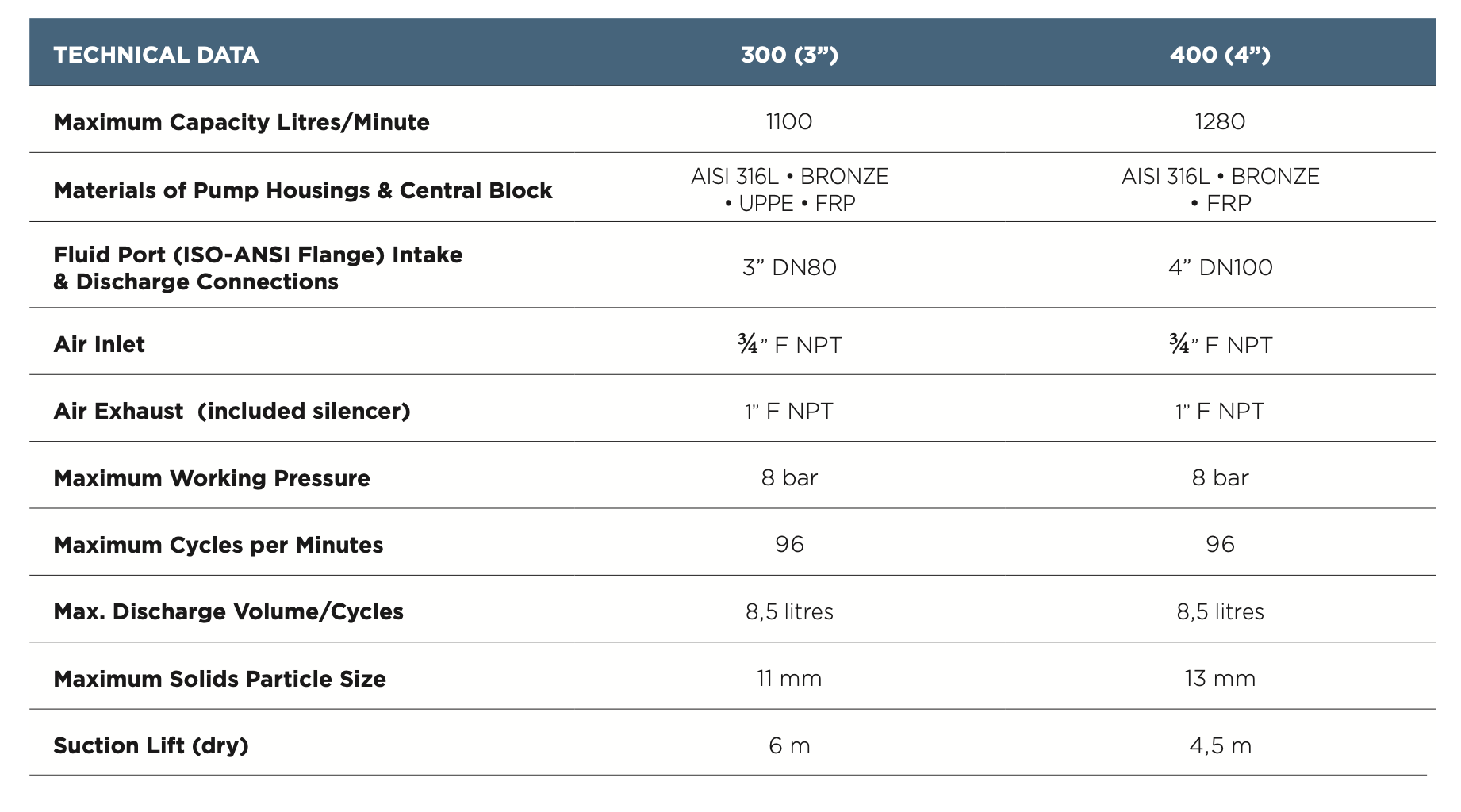

Port size : 3” – 4″

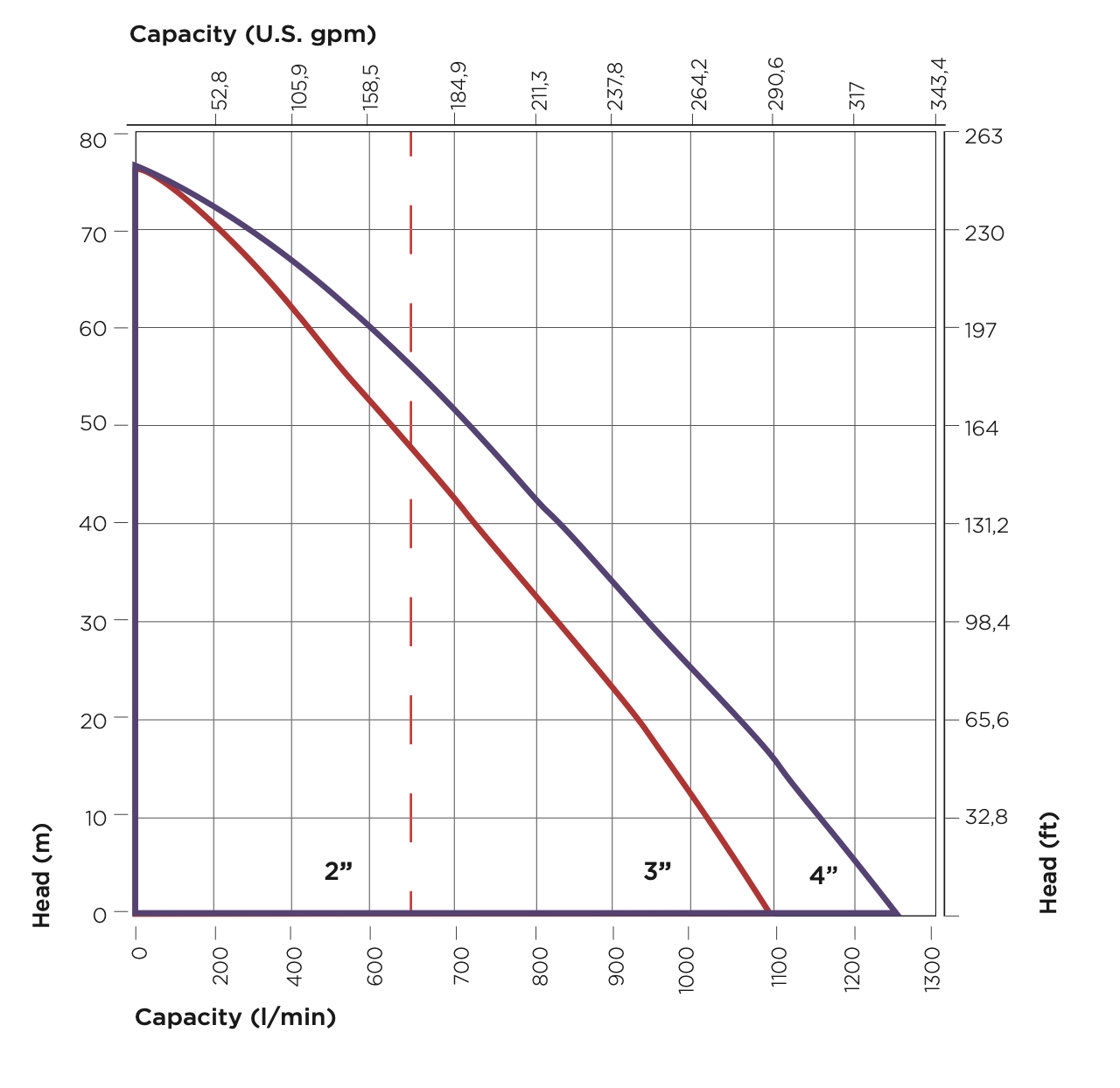

Capacity : from 70 to 1280 l/m’
Wetted section : AISI 316L – BR
Temperatures : +250° -20° (PTFE diaphragms)
Wetted section : AISI 316L – BR
Temperatures : +250° -20° (PTFE diaphragms)
+80° -40° (NBR, EPDM, diaphragms)
- High hydraulic performance
- Low air consumption
- Non-icing air valve system
- Very-fast air distributor system made of only 5 components
- Stall-free design
- Anti-corrosive materials (AISI 316L, Bronze, Duplex) or anti-abrasive
- material (PE1000)
- Thermoplastic diaphragms (TPE, TPV) and reinforced elastomers (EPDM, NBR, PTFE)
- Ideal for shear-sensitive liquids (thanks to the smooth movement of the diaphragms)
- For continuous, heavy, and dangerous
- Upon request: ATEX Zone 2 (II 3G Ex h IIB T4 Gb X | II 3D Ex h IIIB T135°C Db X)
