NDV Pump
DOUBLE SUCTION (DVN) – Horizontal,Double Suction,Centrifugal Pumps
Usage and Application
- Power plant and agriculture
- Pulp & paper industries
- Irrigation
- Water Supply
- General Plant
Specification
- Capacity : 3 m³/min ~ 300 m³/min
- Head : 8 m ~ 190 m
- Suction Dimension : ø200 mm ~ ø1300 mm
- Rotation Direction : CW
Features
- Axially split casing for easy maintenance
- Great variety in metallic materials for corrosion and wear resistance
- Versatile to suit numerous application
- Possible to fit with fan type impeller for pulp and paper industries

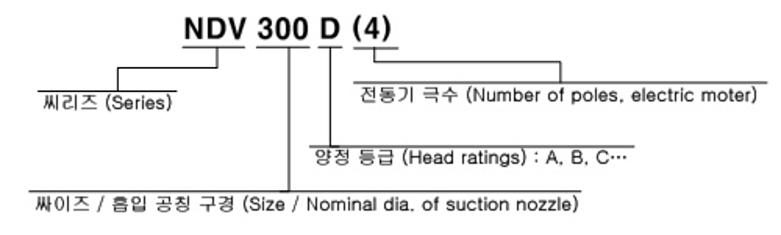

Type Expression

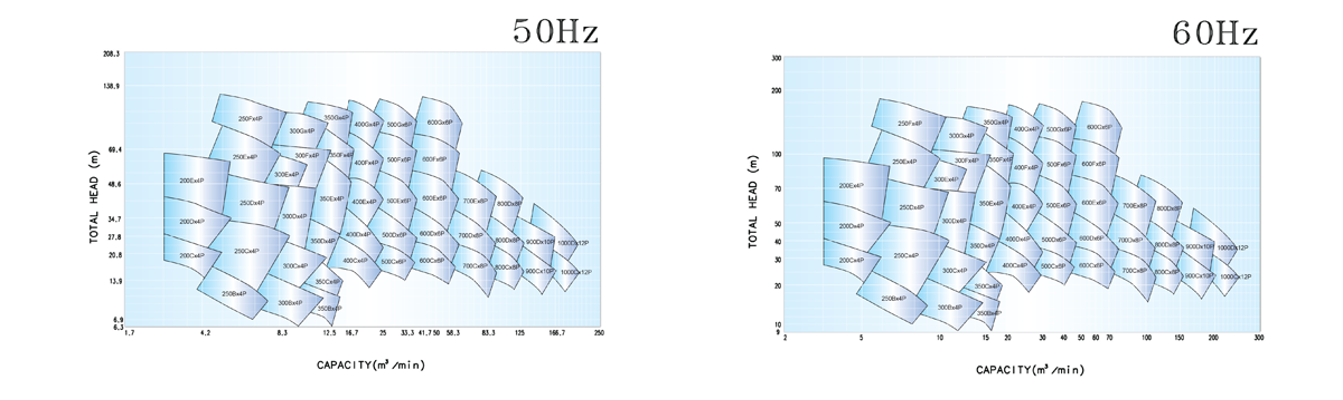

Performance selection chart
